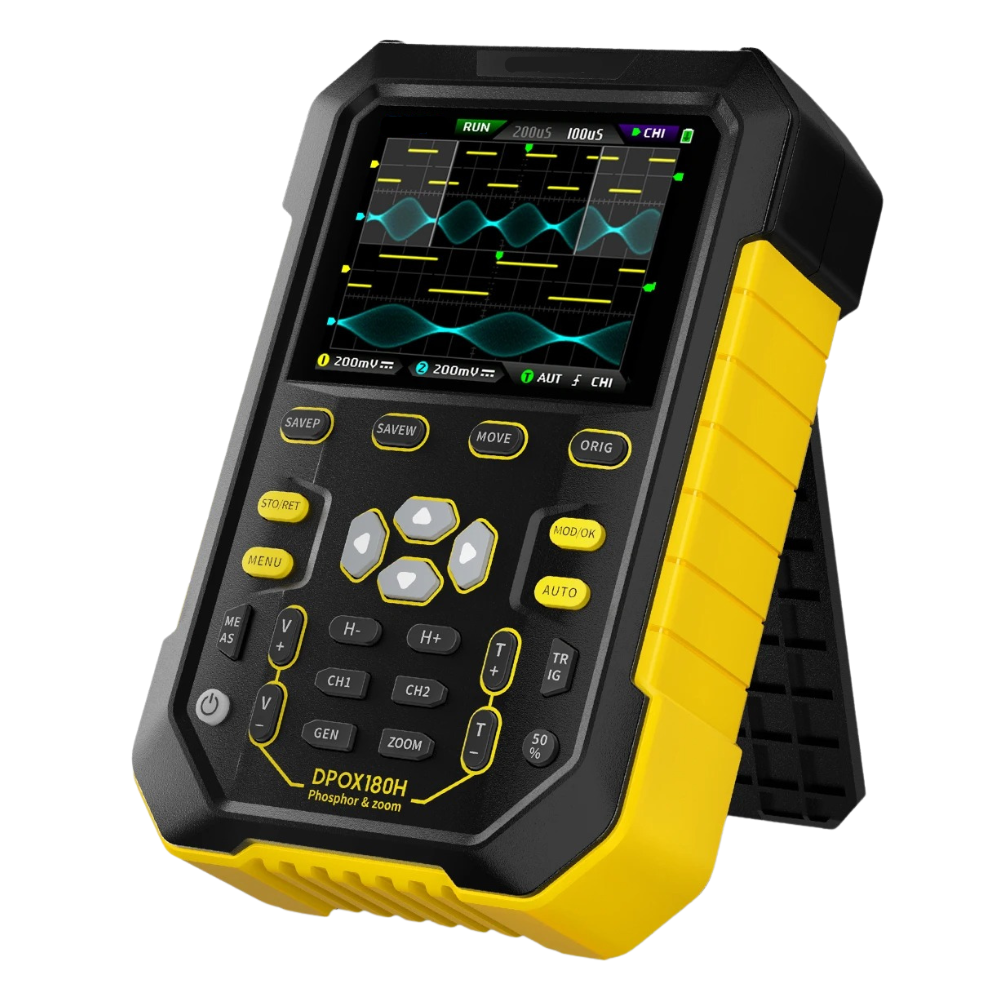

This 2-in-1 handheld digital oscilloscope and signal generator combines precision measurement and signal creation in a compact, portable design. Ideal for electronics testing, DIY projects, and field diagnostics, it delivers high-speed sampling, clear visuals, and versatile waveform analysis — all in one durable handheld unit.

Key Features

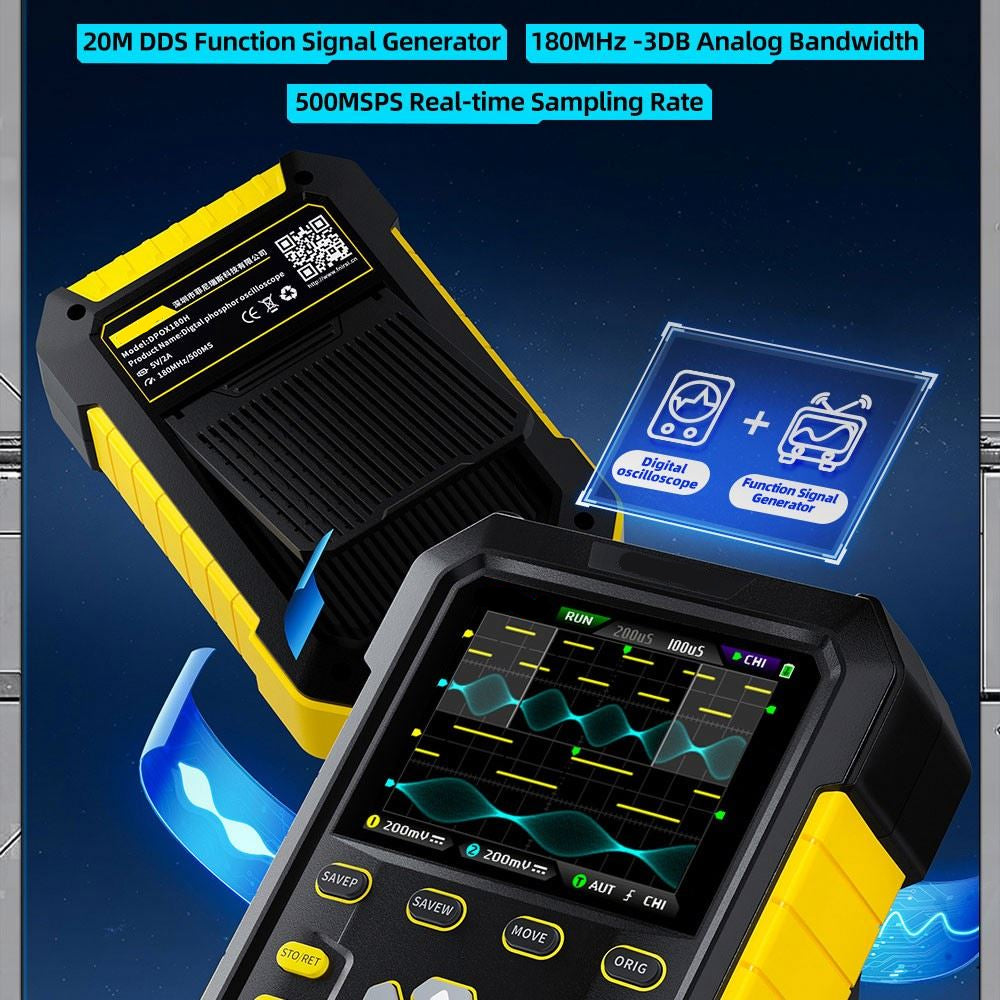

• Dual Functionality: Combines a 180MHz digital phosphor oscilloscope and a 20MHz signal generator.

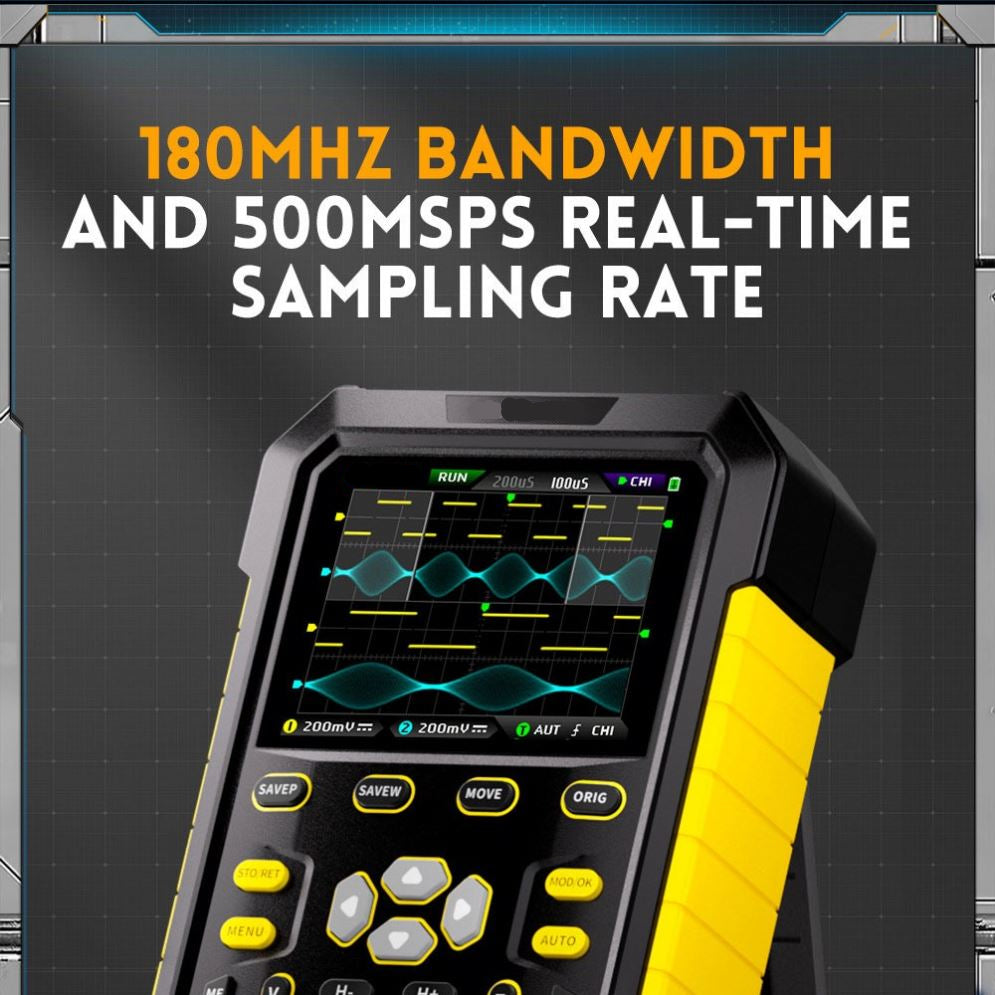

• High Sampling Rate: 500MSPS for accurate waveform capture and detailed analysis.

• Vivid Display: 2.8-inch IPS full-view LCD screen for clear waveform visualization.

• Versatile Measurement: Supports auto, single, and normal trigger modes for various signal types.

• Customizable Signals: Includes 14 standard waveforms and user-defined signal storage.

• High Voltage Protection: Withstands up to 400V across all ranges for safe operation.

• Data Storage & Export: Save up to 250 waveforms or 90 screenshots; export via USB.

• Rechargeable Battery: Built-in 3000mAh battery with up to 4 hours of continuous use.

• Portable Design: Lightweight and ergonomic, perfect for bench or on-site testing.

Specifications

• Analog Bandwidth: 180MHz

• Sampling Rate: 500MSPS

• Channels: 2

• Display: 2.8" IPS, 320×240 resolution

• Vertical Sensitivity: 5mV–10V (1X)

• Time Base Range: 5nS–50S

• Input Impedance: 1MΩ-18pF

• Rise Time: 1.8nS

• Trigger Modes: Auto / Single / Normal

• Battery: 3000mAh (rechargeable)

• Charging: 5V-2A, fast charge (80% in 1 hour)

• Dimensions: 135 × 90 × 40mm

• Weight: Approx. 680g

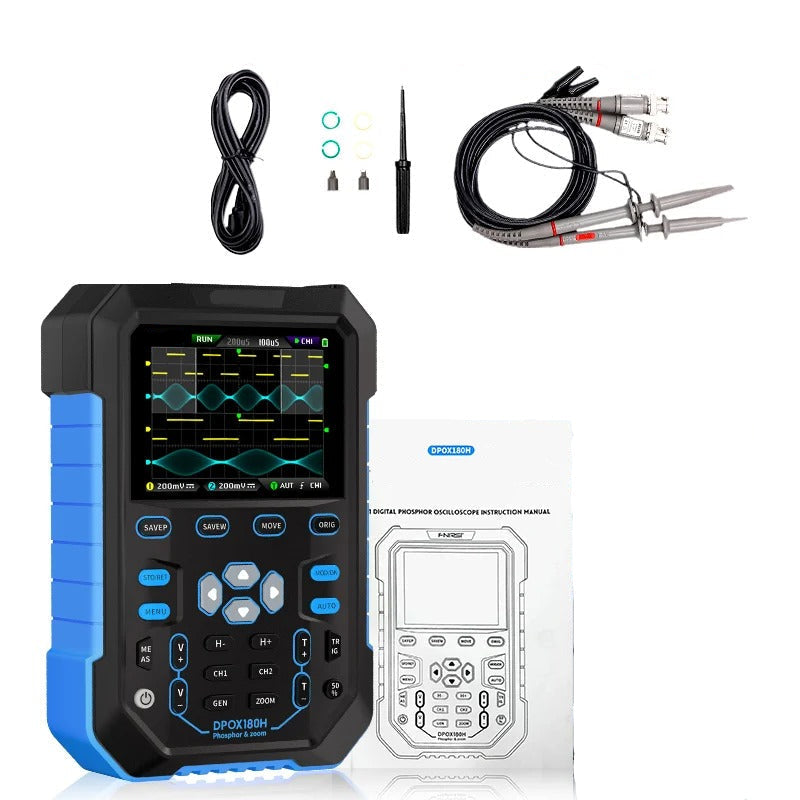

Package Contents

• 1 × Digital Phosphor Oscilloscope (multi-language support)

• 2 × 200MHz Probes (1X & 10X)

• 1 × 5V-2A Power Adapter

• 1 × USB Data Cable

• 1 × User Manual
